Material: Metal, rubber and GRP
IP rating: IP65 according to IEC 60529
Operating temperature: -20°C to +60°C (without lighting functions)
-20°C to +50°C (with lighting functions)
Approvals: ATEX LOM 20ATEX1055X, IECEx LOM 20.0007X
Ex-code: II 2 G – Ex db eb IIC T6 Gb / II 2 D – Ex tb IIIC T85°C Db IP65
Cable entry for cable: Ø 10 to Ø 22 mm
Contact element: 10 A
Ith = 10 A; Ui = 415 V
AC
Ue = 380 V; Ie = 1,9 A or
Ue = 240 V; Ie = 3 A or
Ue = 120 V; Ie = 6 A
DC
Ue = 250 V; Ie = 0,27 A or
Ue = 125 V; Ie = 0,55 A or
Ue = 24 V; Ie = 2,87 A

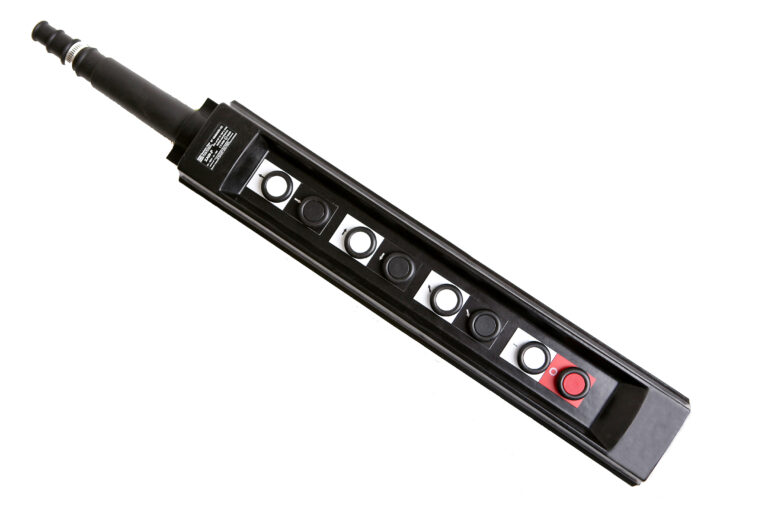

Ex e XAWP pendant station in GRP
The XAWP pendant control stations range is suitable for all kinds of industry but primarily used on cranes. The XAWP range is available with 2, 4, 6 or 8 pushbuttons with up to three contact blocks per operator. Custom double XAWP assemblies can be delivered to provide 12 or 16 way pendant control stations. The XAWP also features an optional double-step actuation mode for dual speed control. Mounting Assembly of the components only by us.
