Operating Temperature: -40°C to + 70°C Humidity: Up to 95% RH
Material: UV and Corrosion Resistance GRP (Anti-Static GRP Optional)
IP rating: IP66
Type: Break Glass. Test Key Facility
Enclosure Colour: RED: RAL 3001 – YELLOW**: RAL1018 – BLUE**: RAL5005 – BLACK**: RAL9004, BLACK WITH YELLOW ZEBRA**
Power Supply: 24V DC or 100-240V AC
Switch Rating: 250V AC- 11A (Resistive), 6A (Inductive), 30V DC- 6A (Resistive), 6A (Inductive)
Output: On-off Output (NC/NO) or 4-20mA DC
Certification: NEMKO 13ATEX1568X, IECEX NEM 13.0038X
Marking: II 2 GD, Ex d IIB+H2 T6 Gb, Ex tb IIIC T85°C (T amb = -40°C … +70°C)
Cable Entry: 4* M20, M25, 1/2” NPT, 3/4” NPT or Others on request
Optional:
– Lift Flap
– LED Indicator
– Resistor and/or diode can be Fixed

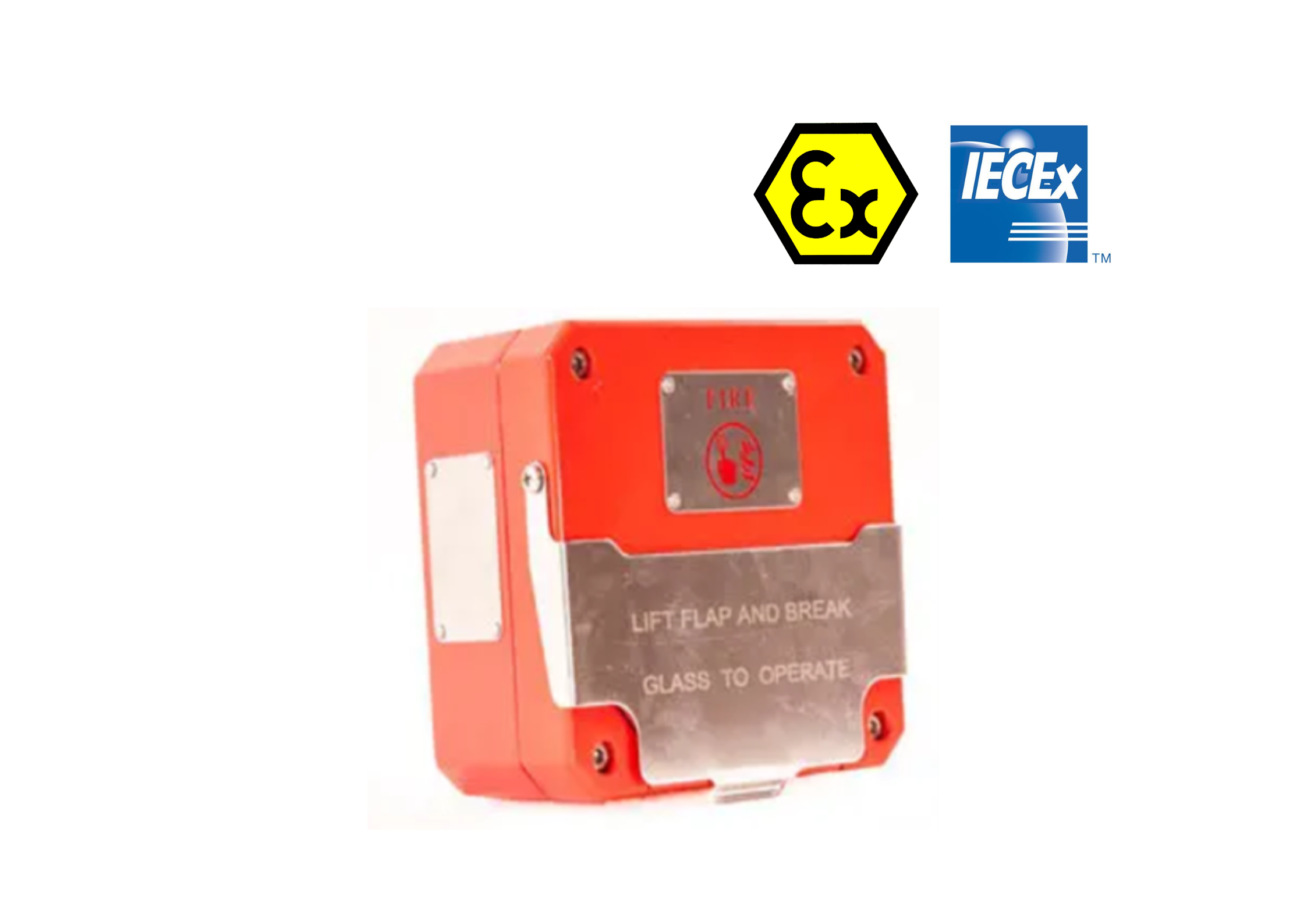

Manual Call Points – CP135 in GRP
CP 135 Manual Call point is a product certified for ATEX explosive atmosphere, zone 1 & 2 for gas and zone 21 & 22 for dust.
It is dedicated Oil & Gas, chemical, petrochemical, pharmacy industries, marine and Offshore applications.
It was developed for corrosive environments and hazardous areas.
The manual call point is compatible with PLC, ESD, DCS systems via output 4-20 mA.
The test function is built in. Visualization functions, line detection, and glass protection, hammer, are optional.
Body is in GRP UV resistant. Can be used as an Ex-Manual Call Point for Fire Alarm System with an addressable module fixed inside.
